Water Valve

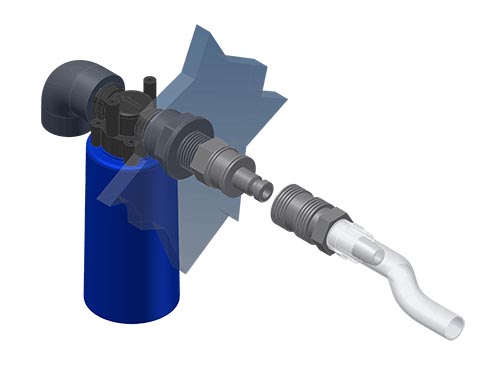

The ABERTAX® WV, magnetic water valve, uses Patented Technology which has numerous advantages over all existing water valves on the market. The Magnetic Water Inlet Valve features a float with an embedded magnet that will operate a diaphragm type valve. The rising water level lifts the float. The magnet inside the float then moves a stainless steel pilot plunger which closes the valve. The domestic version is designed for cold, fresh water application with a maximum inlet pressure of up to 4 bar. It is best suitable for loft tanks and flushing application. The industrial version be used for up to 6 bar inlet pressure and withstands chemicals with a maximum ph of 12. This version is best be used for floor cleaning vehicles, water ponds and farming applications. Both, domestic and industrial version, can be equipped with a silencer pipe.
Water Valve for industrial application
The Abertax Technologies Magnetic Water Inlet Valve features a float with an embedded magnet that operates a diaphragm type valve. The rising water level lifts the float. The magnet inside the float then moves a stainless steel pilot plunger which closes the valve.
- max inlet pressure 6bar
- cold water
- chemicals up to ph12
- Various connector types available
-
Parameters
- Type :
- Industrial
- Inlet_pressure_(bar) :
- 6
- Brochure (PDF) :
- View
